Description
An oil storage tank constitutes a receptacle crafted for the storage of oil, usually encompassing crude oil or petroleum derivatives such as gasoline, diesel, and jet fuel.These tanks can exist either above ground or below ground and manifest in a range of dimensions and materials, including steel and fiberglass.Their primary function entails the containment of substantial oil quantities to ensure safe and protected storage, while also mitigating the risk of leaks or spills.The planning and functioning of oil storage tanks necessitate the incorporation of elements like safety, safeguarding the environment, and adherence to regulatory standards.
oil storage tank Application
Jiangsu sunrise oil storage tank is designed for the storage of clear oil.
An oil storage tank constitutes a receptacle crafted for the storage of oil, usually encompassing crude oil or petroleum derivatives such as gasoline, diesel, and jet fuel. These tanks can range in size from small, Above ground tanks to large, underground storage facilities. They serve the objective of offering a safe and dependable storage resolution for substantial quantities of oil. Usually constructed from materials like steel or fiberglass, these tanks are engineered to endure challenging environmental circumstances and avert leaks or spills effectively.Several primary factors in the planning and functioning of oil storage tanks encompass safety, safeguarding the environment, and adhering to regulatory requirements.

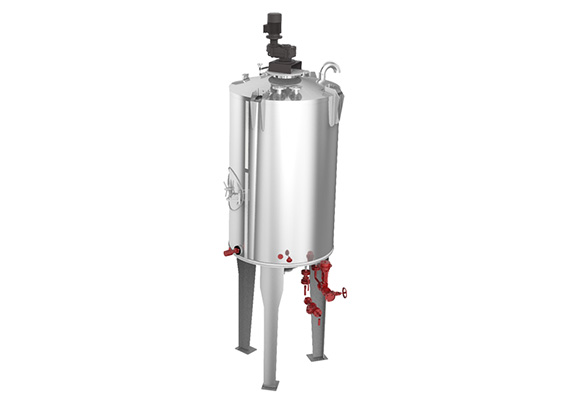

Design characteristics
1. The tank design adopts stainless steel or carbon steel material, and the triangular leg design makes the tank stable.
2. Internal design coil heating and agitating shaft to prevent grease solidification.
3. The upper part of the tank is designed for overflow and the flange.
4. External design insulation layer, insulation thickness 50mm, 0.7mm stainless steel wire drawing board outside insulation layer.
Technical parameter
| Model | Volume (L) | Power (kW) | Diameter(mm) | Height(mm) | Weight(kg) |
| G-JRJB-2500 | 2500 | 1.1 | 1250 | 4750 | 1000 |
| G-JRJB-5000 | 5000 | 1.1 | 1900 | 4300 | 1200 |
Oil Storage Tank FQA
1、What is used for?
Ans: It is used to store crude oil or petroleum products. Such as gasoline, diesel, and jet fuel.
2、What are the different types o?
Ans: Oil storage tanks come in both above-ground and underground variations and can be constructed using materials like steel or fiberglass.
3、What size can be?
Ans: Oil storage tanks can range from small above-ground tanks to large underground facilities.
4、What factors should be considered when designing an oil storage tank?
Ans: When crafting an oil storage tank, it’s crucial to take into account elements such as safety, environmental preservation, and adherence to regulatory mandates.
5、Why are oil storage tanks made of fiberglass or steel?
Ans: Fiberglass or steel are chosen for crafting oil storage tanks due to their durability, ability to withstand challenging environmental conditions, and capacity to avert leaks or spills.
